Toolbar

Toolbars are a standard iOS component - see Toolbars in the Apple Human Interface Guidelines.

The NHS design system for iOS adds some custom toolbar items which make it easier to use the NHS font, and to support some common actions within the NHS App.

When to use

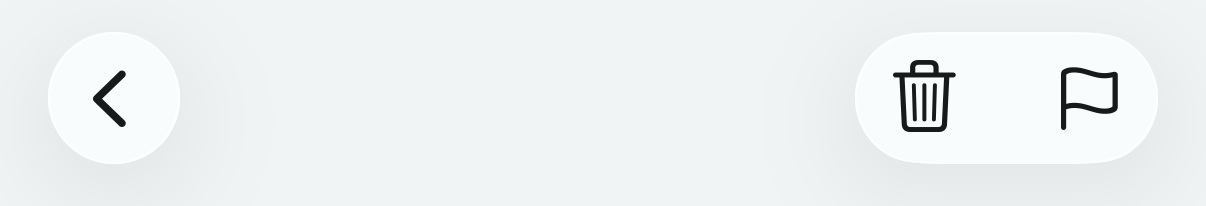

Use toolbars to give users the ability to take actions relevant to the current screen.

These can include:

• going back to the previous screen
• closing the current screen
• filtering a list view
• flagging or deleting an item

Only include the most commonly used actions, and avoid placing too many actions in a toolbar.

When not to use

Do not use toolbar items for actions that are infrequent and significant, such as booking an appointment or referring yourself for care. Use a button within the main content area for these instead.

How to use

The design system contains some specific toolbar items. Use these if the context applies:

• Back button
• Close button
• Done button
• Filter button
• Flag button
• Messages button
• NHS logo item

If you need to add a different type of toolbar action, use one of these generic toolbar buttons instead:

• Icon toolbar button
• Text toolbar button

Back button

The back button will appear in the toolbar at the top left automatically when using the NavigationStack. You do not need to add this.

Close button

The close button should be added to most screens presented as a modal, allowing the user to return to the screen beneath it. Do not use it when the user has reached the end of a journey - use the 'done' button instead.

struct BookAppointmentView: View {
    var body: some View {
        NavigationStack {
            ScrollView {
                // content
            }
            .toolbar {
                CloseToolbarItem(accessibilityHint: "Returns to the prescriptions screen") {
                    // close the view
                }
            }
        }
    }
}

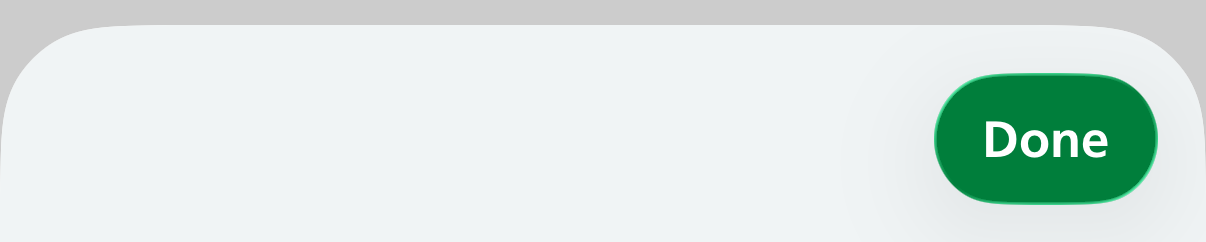

Done button

The 'done' button is added to any screens presented as modal, when the user has reached the end of a journey and has completed a task. For example, after booking an appointment.

struct BookAppointmentConfirmationView: View {
    var body: some View {
        NavigationStack {
            ScrollView {
                // content
            }
            .toolbar {
                DoneToolbarItem() {
                    // close view
                }
            }
        }
    }
}

Filter button

The filter button can be added to list views, enabling a user to bring up options allowing the list to be filtered, or to change existing filters.

It is presented with both a filter icon and the word 'Filter', as research shows that not all users understand the icon. When filters are active, the button changes to using blue, bold text, and the number of active filters is shown in brackets.

struct MessagesView: View {
    var body: some View {
        List {
            // content
        }
        .toolbar {
            FilterToolbarItem(activeFilterCount: 0) {
                // open filter options
            }
        }
    }
}

Flag button

The flag button can be used on detail views for items which the user can flag, to mark the item.

struct MessageView: View {
    var body: some View {
        ScrollView {
            // content
        }
        .toolbar {
            FlagToolbarItem(
                flagged: false,
                labelSuffix: " this message"
            ) {
                // toggle flag status
            }
        }
    }
}

Messages button

The messages button is used on the home screen only, and serves as both an indicator of any unread messages, and a way to navigate to the messages section.

struct HomeView: View {
    var body: some View {
        ScrollView {
            // content
        }
        .toolbar {
            MessagesToolbarItem(unreadCount: 3) {
                // navigate to messages inbox
            }
        }
    }
}

NHS logo item

The NHS logo item is used on the home screen only, and appears in the top left position. It is not button, and does not do anything when tapped. It is there to provide the reassurance of the NHS identity.

Use it by adding a NHSLogoToolbarItem. There are no additional options.

struct HomeView: View {
    var body: some View {
        NavigationStack {
            ScrollView {
                // content
            }
            .toolbar {
                NHSLogoToolbarItem()
            }
        }
    }
}

Icon toolbar button

Use an icon toolbar button when you are confident through research that most users can understand the icon.

struct MessageView: View {
    var body: some View {
        ScrollView {
            // content
        }
        .toolbar {
            IconToolbarItem(
                systemImage: "trash",
                label: "Remove",
                accessibilityHint: "Removes this message from your inbox"
            ) {
                // remove action
            }
        }
    }
}

Text toolbar button

If you need to add a toolbar button which cannot be reliably identified using an icon, use a text toolbar button instead. This will use the NHS font.

struct RemovedMessageView: View {
    var body: some View {
        List {
            // content
        }
        .toolbar {
            TextToolbarItem(
                label: "Restore",
                accessibilityHint: "Moves this message back to your inbox"
            ) {
                // restore action
            }
        }
    }
}

Accessibility

This component supports Dynamic Type, Dark Mode and VoiceOver.

Where the button is an icon, the accessible label must be set for VoiceOver users. The specific buttons do this automatically, but the generic ones require this to be set.

The accessibilityHint is optional and can be used to give VoiceOver users an indication of what will happen after pressing the button, where this is otherwise not clear.

Research

These toolbar items are not yet being used by the live NHS App, but several rounds of research have been done on them.
